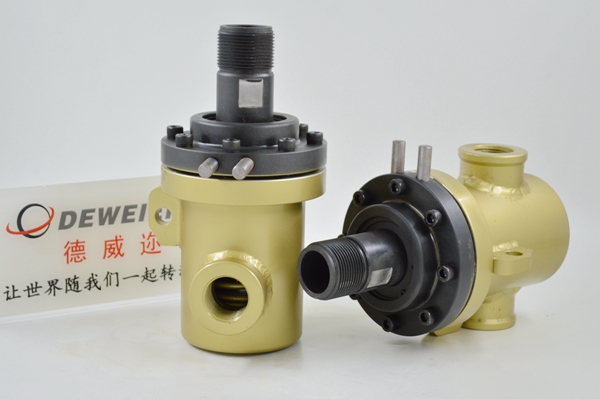

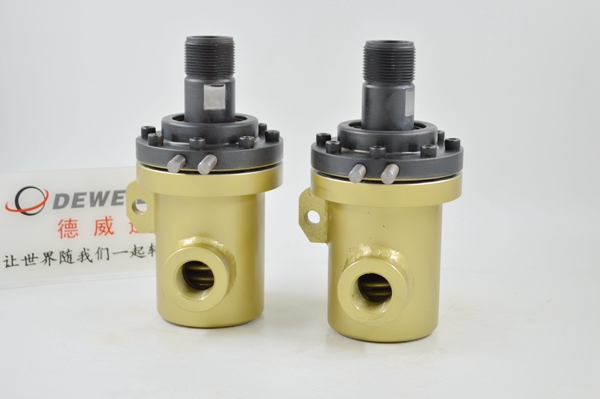

MAIER旋轉接頭DX系列適用于冷卻水(DX/DXS)和熱水(DXS)易于維修.在紡織、塑料和紙張行業得到全面認可 。黃銅外殼，直徑DN100和DN100以上及型號DXSA的外殼是鋼制的。轉體和工作面由鉻鋼制成，而DXS和DXSA的工作表面是金屬陶瓷。緊湊型機械密封設計DXS和DXSA的機械密封是無壓力設計在高溫時易于連接利用標準的左、右旋公螺紋連接到轉動中的壓力系統在密封和定中心錐管尾部是螺紋。 |
|
技術參數(Application data) |
DX |
DXS |
DXS |
DXS/DXSA |
DXSB |
設計序列
接頭直徑 DN mm |
1,2,R2
10~80 |
1,2
10~80 |
R2
10~80 |
1,2,A2
10~80 |
B2
50~80 |
|
介質 |
冷卻水 |
冷卻水、熱水 |
冷卻水、熱水 |
冷卻水、熱水、蒸汽 |
冷卻水、熱水 |
溫度 oC
壓力 PN bar |
-15~80
0,2~8 |
-15~150
0,2~8 |
-15~150
0,2~8 |
-15~160
0,2~10 |
-15~160
0,2~10 |
|
轉速 min-1 |
50000
DN |
55000
DN |
50000
DN |
55000
DN |
55000
DN |
|
|
|
|
|
DX |
S |
A |
2 |
150 |
F |
-100 |
|
型號 |
熱水和蒸汽 |
旋轉內管設計 |
供給連接 |
接頭直徑 |
旋轉體連接 |
特殊設計 |
|
|
|
|
|
|
S: 金屬陶瓷用于熱水和蒸汽R: 滑動軸和管密封A: 完全獨立的主流和回流B: 回轉體內的靜止內管
供給連接
1: 單通道2: 雙通道3: *雙通道帶真空閥 *依據設計要求接頭直徑 10, 15, 20, 25, 32, 40, 50, 65, 80, 100, 125, 150旋轉體連接R: 右旋L: 左旋K: K 法蘭F: 固定法蘭 |
|
|
|
DX |
Type |
DX110R |
DX115R |
DX120R |
DX125R |
DX132R |
DX140R |
DX150R |
DX165R |
DX180R |
|
Order-No |
1106000 |
1106050 |
1106100 |
1106150 |
1106200 |
1106250 |
1106300 |
1106350 |
1106400 |
|
Type |
DX110L |
DX115L |
DX120L |
DX125L |
DX132L |
DX140L |
DX150L |
DX165L |
DX180L |
|
Order-No |
1106001 |
1106051 |
1106101 |
1106151 |
1106201 |
1106251 |
1106301 |
1106351 |
1106401 |
|
Type |
DX110K |
DX115K |
DX120K |
DX125K |
DX132K |
DX140K |
DX150K |
DX165K |
DX180K |
|
Order-No |
1106002 |
1106052 |
1106102 |
1106152 |
1106202 |
1106252 |
1106302 |
1106352 |
1106402 |
|
Type |
DX210R |
DX215R |
DX220R |
DX225R |
DX232R |
DX240R |
DX250R |
DX265R |
DX280R |
|
Order-No |
1106003 |
1106053 |
1106103 |
1106153 |
1106203 |
1106253 |
1106303 |
1106353 |
1106403 |
|
Type |
DX210L |
DX215L |
DX220L |
DX225L |
DX232L |
DX240L |
DX250L |
DX265L |
DX280L |
|
Order-No |
1106004 |
1106054 |
1106104 |
1106154 |
1106204 |
1106254 |
1106304 |
1106354 |
1106404 |
|
Type |
DX210K |
DX215K |
DX220K |
DX225K |
DX232K |
DX240K |
DX250K |
DX265K |
DX280K |
|
Order-No |
1106005 |
1106055 |
1106105 |
1106155 |
1106205 |
1106255 |
1106305 |
1106355 |
1106405 |
|
Type |
DXR215R |
DXR220R |
DXR225R |
DXR232R |
DXR240R |
DXR250R |
DXR265R |
DXR280R |
- |
|
Order-No |
1106056 |
1106106 |
1106156 |
1106206 |
1106256 |
1106306 |
1106356 |
1106406 |
- |
|
Type |
DXR215L |
DXR220L |
DXR225L |
DXR232L |
DXR240L |
DXR250L |
DXR265L |
DXR280L |
- |
|
Order-No |
1106057 |
1106107 |
1106157 |
1106207 |
1106257 |
1106307 |
1106357 |
1106407 |
- |
|
Type |
DXR215K |
DXR220K |
DXR225K |
DXR232K |
DXR240K |
DXR250K |
DXR265K |
DXR280K |
- |
|
Order-No |
1106058 |
1106108 |
1106158 |
1106208 |
1106258 |
1106308 |
1106358 |
1106408 |
- |
|
  |
|
DXS |
Type |
DXS110R |
DXS115R |
DXS120R |
DXS125R |
DXS132R |
DXS140R |
DXS150R |
DXS165R |
DXS180R |
|
Order-No |
1105000 |
1105075 |
1105150 |
1105225 |
1105300 |
1105375 |
1105450 |
1105525 |
1105600 |
|
Type |
DXS110L |
DXS115L |
DXS120L |
DXS125L |
DXS132L |
DXS140L |
DXS150L |
DXS165L |
DXS180L |
|
Order-No |
1105001 |
1105076 |
1105151 |
1105226 |
1105301 |
1105376 |
1105451 |
1105526 |
1105601 |
|
Type |
DXS110K |
DXS115K |
DXS120K |
DXS125K |
DXS132K |
DXS140K |
DXS150K |
DXS165K |
DXS180K |
|
Order-No |
1105002 |
1105077 |
1105152 |
1105227 |
1105302 |
1105377 |
1105452 |
1105527 |
1105602 |
|
Type |
DXS210R |
DXS215R |
DXS220R |
DXS225R |
DXS232R |
DXS240R |
DXS250R |
DXS265R |
DXS280R |
|
Order-No |
1105004 |
1105079 |
1105154 |
1105229 |
1105304 |
1105379 |
1105454 |
1105529 |
1105604 |
|
Type |
DXS210L |
DXS215L |
DXS220L |
DXS225L |
DXS232L |
DXS240L |
DXS250L |
DXS265L |
DXS280L |
|
Order-No |
1105005 |
1105080 |
1105155 |
1105230 |
1105305 |
1105380 |
1105455 |
1105530 |
1105605 |
|
Type |
DXS210K |
DXS215K |
DXS220K |
DXS225K |
DXS232K |
DXS240K |
DXS250K |
DXS265K |
DXS280K |
|
Order-No |
1105006 |
1105081 |
1105156 |
1105231 |
1105306 |
1105381 |
1105456 |
1105532 |
1105606 |
|
Type |
DXSR215R |
DXSR220R |
DXSR225R |
DXSR232R |
DXSR240R |
DXSR250R |
DXSR265R |
DXSR280R |
- |
|
Order-No |
1105083 |
1105158 |
1105233 |
1105308 |
1105383 |
1105458 |
1105533 |
1105608 |
- |
|
Type |
DXSR215L |
DXSR220L |
DXSR225L |
DXSR232L |
DXSR240L |
DXSR250L |
DXSR265L |
DXSR280L |
- |
|
Order-No |
1105084 |
|
|
|
|
